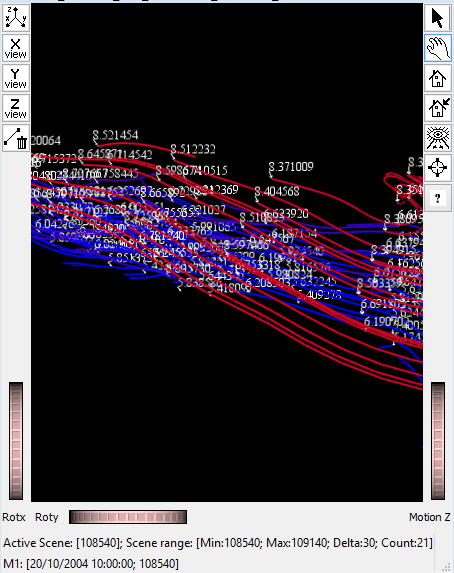

Document View

The left buttons are the following:

  • Axis: Display the graphic axis in view.
  • X View: Set the camera along X axis.
  • Y View: Set the camera along Y axis.
  • Z View: Set the camera along Z axis.
  • Unselect ROI: Remove selected ROI in view.

The right buttons are the following:

  • Select mode: Select object manipulation mode.
  • View mode: Select viewer mode.
  • Home: Put the camera to its home position.
  • Set Home: Put the home position to camera position.
  • View all: Brings the entire camera to view.
  • Set Camera Home: Select a new center of rotation for camera.
  • 3D view mode: Select the type of camera

The handle view buttons are the following:

  • Rotx: Rotate camera around X axis.
  • Roty: Rotate camera around y axis.
  • Motion Z: Move camera on Z axis.
